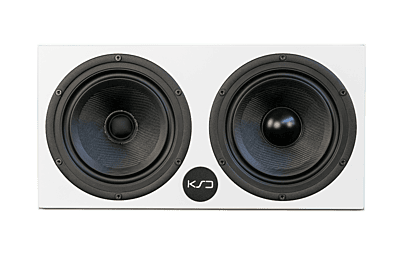

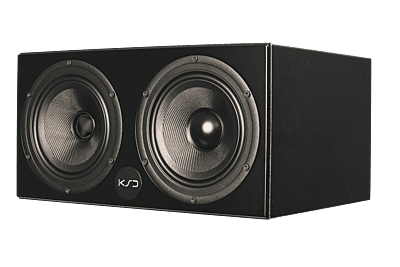

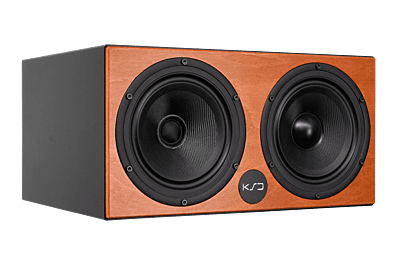

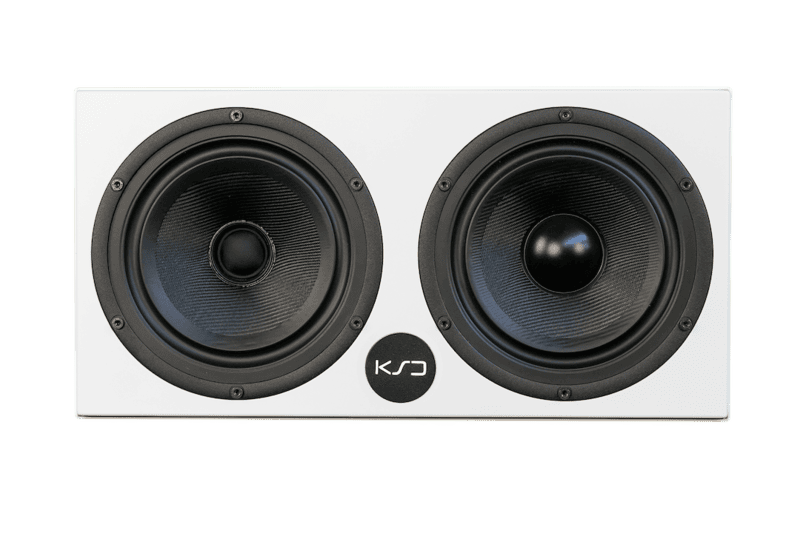

KSD C55 Reference Stereo Pair

Thanks to phase-linear dispersion using FIRTEC filters and a coaxial design, the C55-Reference is extremely lively and impulse-true with an accurate representation of panorama width and stage depth. Two bass drivers double the cone surface area and, with their two powerful drives, ensure a clean, “boom-free” bass reproduction. The C55-Reference is therefore an ideal monitoring tool for music production, from tracking and mixing to mastering.

And of course it’s also particularly nice to simply enjoy music with the C55 Reference.

C55-Reference in short:

• for vertical and horizontal use

• point source works for all distances

• extremely compact size with full bandwidth from 35Hz upwards

Technical data

• 2.5-way coaxial main monitor

• DSP with FIRTEC(™)-procfessor patent:19823110 in FPGA in 24 Bit ADC/DAC

• FIR-Xover, Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain

• 1″ neodymium tweeter custom made 5.5″ coaxial chassis, fiber glass cone for sub, 1“ silk tweeter

• custom made 5.5″ bass chassis, fiber glass cone

• System Power 350W

• SPL > 108 dB Peak/pair

• Frequency response 35 – 22000 Hz

• Weight 20kg, incl. packaging 22kg

• Dimensions 400mm x 200mm x 240 mm, 12.2 kg

• compatible with K&M 24471 for wall/ ceiling mounting
