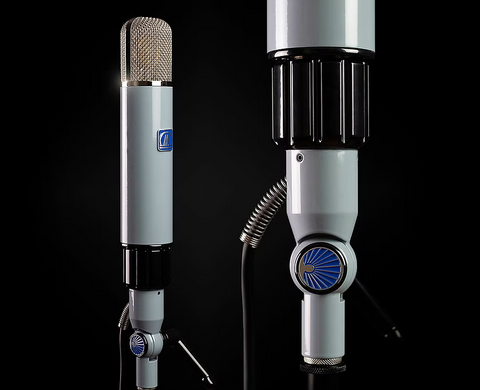

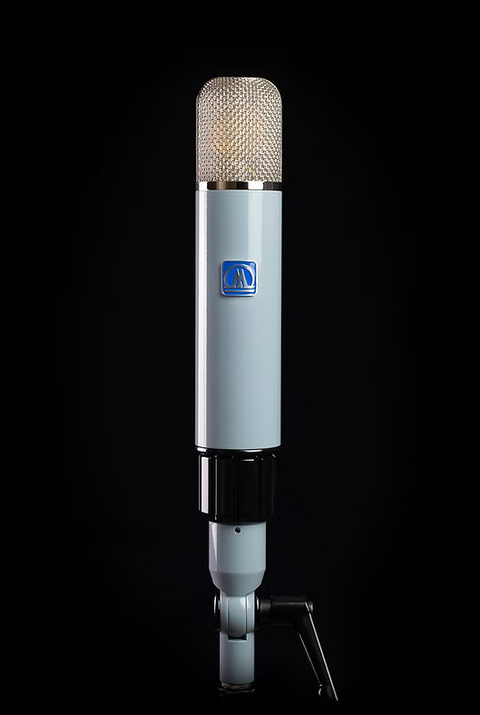

Myburgh M1 – Large-Diaphragm Tube Condenser Microphone

Myburgh M1 – Large-Diaphragm Tube Condenser Microphone

The Myburgh M1 is a hand-built, high-end large-diaphragm tube condenser microphone designed and manufactured in Berlin, Germany. Created by Andrew Myburgh in collaboration with renowned microphone designers Andreas Grosser and Eckehard Dux, the M1 blends classic tube microphone character with modern precision, linearity, and reliability.

Built around a German-made Thiersch M7 Mylar capsule and a long-life Russian military-grade vacuum tube, the M1 delivers a rich, detailed sound with exceptional balance across the frequency spectrum. Its design emphasizes natural tone, low noise, and wide dynamic range, making it suitable for vocals, acoustic instruments, room capture, and demanding studio applications.

Key Highlights

• Hand-built boutique tube condenser microphone
• Designed and manufactured in Berlin, Germany
• German-made Thiersch M7 Mylar capsule
• Russian military-grade long-life vacuum tube
• Custom Pikatron transformers in microphone and power supply
• Multiple selectable polar patterns

Polar Patterns

• Omnidirectional
• Cardioid
• Figure-8

Sonic Characteristics

• Natural, open midrange with controlled low end
• Smooth, extended high-frequency response
• Low self-noise for detailed recordings
• High SPL handling for loud sources

Technical Specifications

• Type: Tube condenser microphone
• Capsule: Thiersch M7 Mylar (Germany)
• Frequency Response: 20 Hz – 20 kHz
• Sensitivity: approx. 24 mV/Pa
• Equivalent Noise Level: approx. 15 dBA
• Maximum SPL: approx. 124 dB
• Output Impedance: approx. 200 Ω
• Connector: 7-pin Binder (mic), XLR output from PSU

Included in the Box

• Myburgh M1 tube microphone

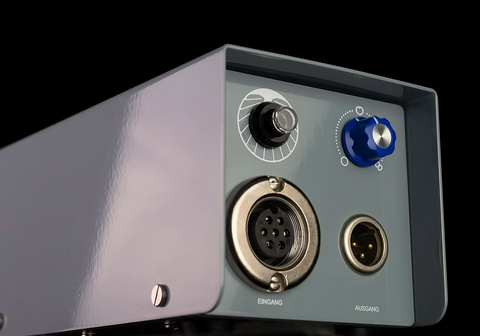

• Dedicated external power supply
• High-quality tube microphone cable
• Protective carrying case
• Documentation
