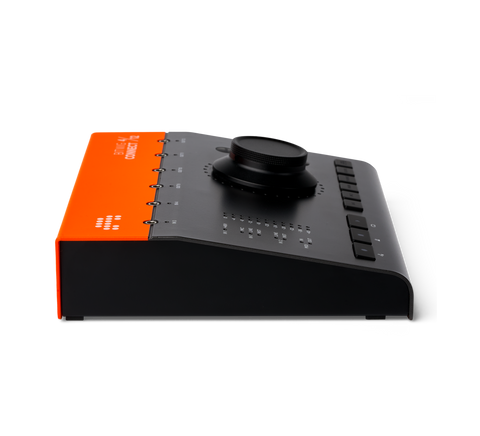

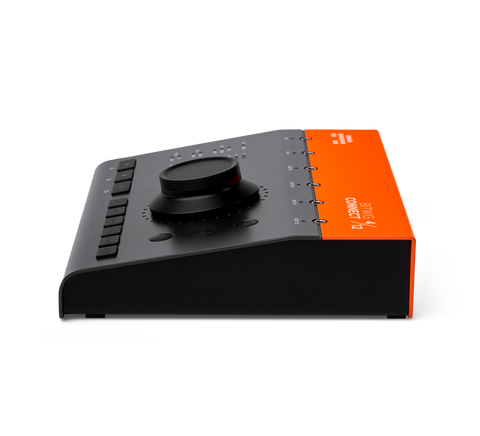

Bitwig Connect 4/12 – Audio Interface & DAW Controller
Bitwig Connect 4/12 – USB-C Audio Interface, CV/MIDI & DAW/Monitor Controller
Bitwig Connect 4/12 is a uniquely integrated USB-C audio interface, CV/MIDI bridge, monitor controller, and hands-on DAW controller built for modern hybrid music production. Designed to work seamlessly with Bitwig Studio, Connect 4/12 streamlines recording, monitoring, performance, and modular workflows in a compact desktop unit—combining professional-grade audio I/O with tactile control and deep software integration.
Includes Bitwig Studio Essentials and a powerful software package via Bitwig Circle.
Key Highlights
- 4-in / 12-out USB-C audio interface with flexible routing
- DC-coupled I/O for modular synths and control voltage workflows
- MIDI I/O for integrating external controllers and hardware synths
- Touch-sensitive 360° encoder with LED feedback for precise hands-on control
- Monitor controller functions including Mute, Dim, Mono, and speaker switching
- Deep Bitwig Studio integration, plus class-compliant operation for other DAWs

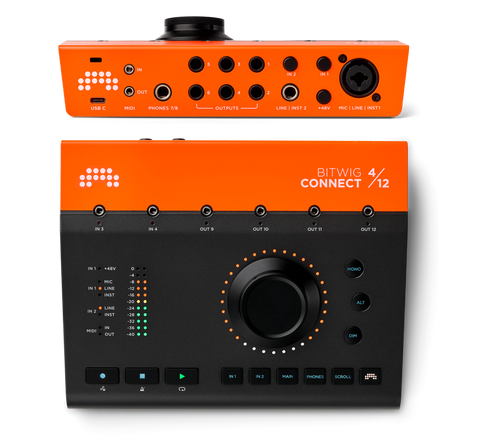

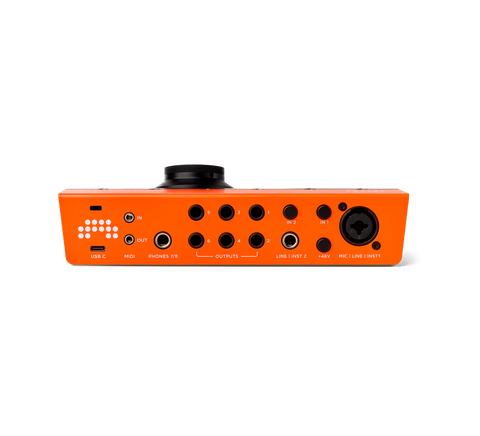

Connectivity & I/O
Connect 4/12 packs comprehensive connectivity into a small footprint, making it equally at home as the centerpiece of a studio, a modular hub, or a portable production rig.
- 4 inputs / 12 outputs for recording, monitoring, outboard, and multi-bus routing
- Mic/Line input on combo XLR/TRS with 48V phantom power
- Balanced line / instrument input with Hi-Z support
- Balanced line outputs for monitors and external processors
- Dedicated headphone output with independent level control
- DC-coupled CV mini-jack I/O for audio or control voltage signals
- MIDI input and output for external MIDI devices

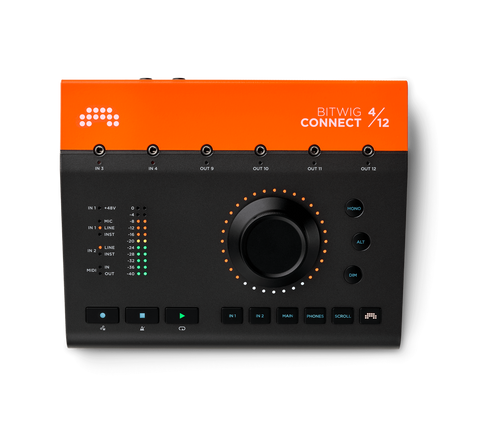

Hands-On Control & Workflow
The centerpiece of Connect 4/12 is its touch-sensitive, endless 360° encoder, surrounded by an LED ring that provides immediate visual feedback. With dedicated mode buttons, the control surface adapts to your workflow—allowing fast access to input gain, monitor levels, headphone volume, transport control, and device parameters without breaking creative flow.
- Input, monitor, and headphone level control
- Transport and navigation control for recording and playback
- Context-aware parameter control inside Bitwig Studio
- Top-panel metering for quick level checks
CV & Modular Integration
With DC-coupled I/O designed specifically for control voltage, Connect 4/12 acts as a powerful bridge between Bitwig Studio and modular or analog hardware. Drive pitch, gates, envelopes, LFOs, and modulation signals directly from your DAW for tightly synchronized, expressive hybrid setups.
Technical Specifications
- Audio Resolution: up to 24-bit / 192 kHz
- Connectivity: USB-C (class-compliant)
- Inputs: 4 total (mic/line, instrument/line, plus DC-coupled)
- Outputs: 12 total (balanced line, headphones, DC-coupled CV)
- CV/MIDI: DC-coupled CV I/O and MIDI I/O
- Power: USB bus-powered
- Form factor: desktop unit with robust build quality
Included in the Box
- Bitwig Connect 4/12 hardware
- USB-C cable (and adapter if included by manufacturer)
- MIDI adapters and mini-jack patch cables (as included)
- Bitwig Studio Essentials license
- Bitwig Circle software bundle access
