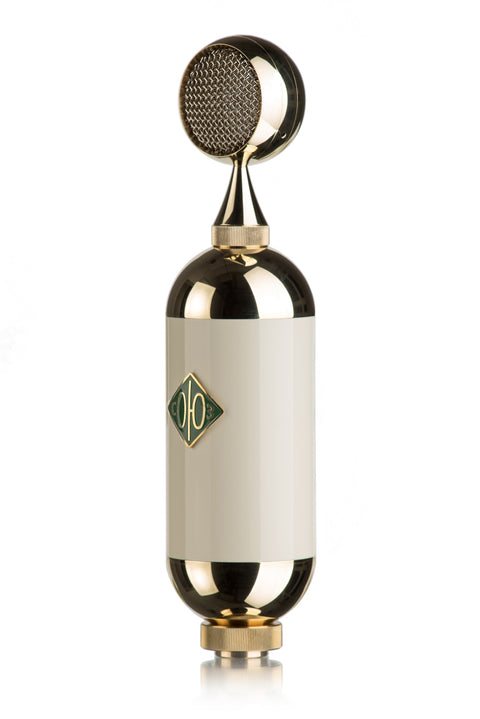

Soyuz 017 FET Large-diaphragm Condenser Microphone

Soyuz 017 FET Large-diaphragm Condenser Microphone

The Soyuz 017 FET is a large-diaphragm FET condenser microphone built around Soyuz’s 017 Series capsule platform. Designed for studio-grade capture with a confident, mix-ready tonality, the 017 FET is an excellent “go-to” microphone for lead vocals, acoustic instruments, guitar cabinets, drum rooms, and sources where you want size, detail, and controlled presence without exaggerated top-end hype.

At the core of the 017 Series is Soyuz’s custom S17 capsule, featuring a hand-tuned, gold-sputtered 34mm diaphragm. The design is informed by classic large-diaphragm capsule architecture, but tuned and assembled to deliver a distinctly musical result rather than a clone of any single vintage microphone.

Key Features

• Large-diaphragm FET condenser for modern 48V phantom-powered workflows
• Cardioid polar pattern for focused capture and reliable isolation
• Interchangeable capsule platform with an optional omnidirectional capsule available for expanded recording techniques
• High SPL handling suitable for loud sources and close placement
• Premium accessories included for daily professional use (see “Included in the Box”)

Where It Excels

• Vocals – present and controlled capture that sits confidently in a mix
• Acoustic guitar / strings – detailed articulation with natural body
• Drum room / overhead support – solid punch with clarity and depth
• Guitar cabinets – strong midrange definition with controlled top end
• Ensemble / room capture – expand the system with the optional omni capsule for a more open pickup

Technical Specifications

• Type: FET condenser microphone
• Capsule: Dual-diaphragm design (two 34mm membranes, one gold-sputtered)
• Polar Pattern: Cardioid
• Frequency Range: 20 Hz – 20 kHz
• Sensitivity: 38 mV/Pa
• Output Impedance: 200 Ohms
• Maximum SPL: 140 dB
• Equivalent Noise: 18 dB (A-weighted)
• Power: 48V phantom power
• Size: 226mm length × 55mm diameter
• Weight: 930g

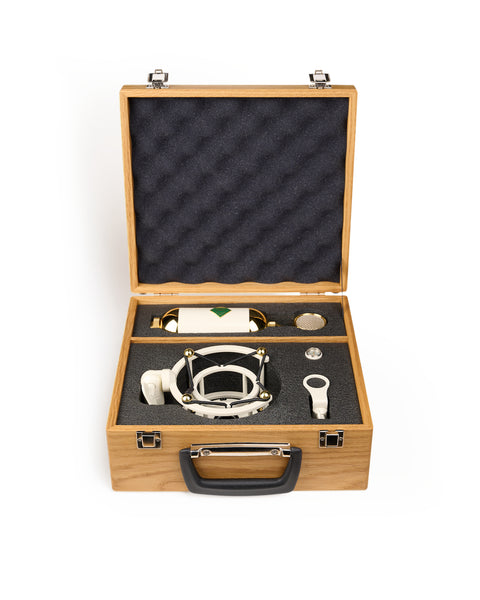

Included in the Box

• Soyuz 017 FET microphone
• Wooden oak suitcase
• -20 dB pad

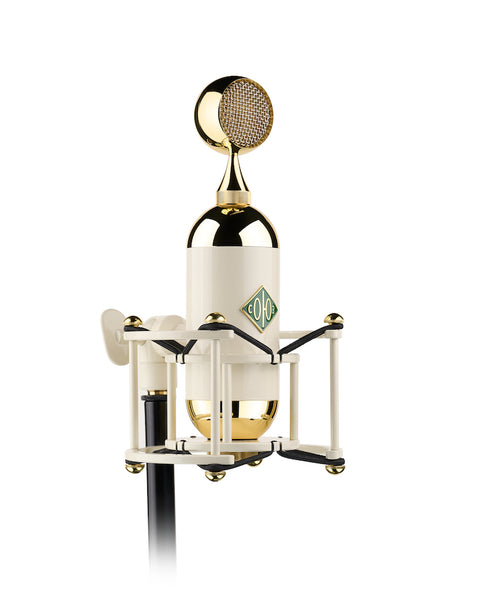

• Custom shock mount
• Custom hard mount (mic clip)

Optional Accessories

• Optional omnidirectional capsule for expanded pickup patterns and stereo / room techniques
