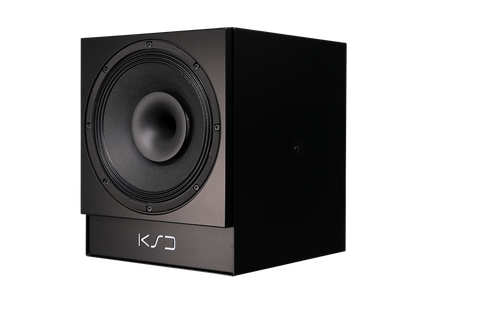

KSD C100 Reference Stereo Pair

KSD C100 Reference Monitor Features

• Proprietary FIRTEC Technology: Employs patented phase-linear FIRTEC system filters for timely and accurate sound reproduction across the entire frequency range

• Coaxial Design: Features a unique coaxial structure with a conical 70° horn, ensuring optimal radiation and a perfect sweet spot for critical listening

• High Power Output: Equipped with a power amplifier delivering over 200W (peak) per channel, providing substantial power reserves suitable for any professional studio application

• Efficient Performance: High efficiency in bass chassis and compression drivers reduces distortion at higher volumes, while PWM power amplifiers ensure minimal waste heat, enhancing durability and performance

• Versatile Placement Options: Optimized for performance in any listening environment, including on-wall installations, ensuring maximum control over sound reproduction in diverse settings

• May be paired with the KSD B500 subextension

KSD C100 Reference Monitor Specifications

• Type: 2-way coaxial point sound source

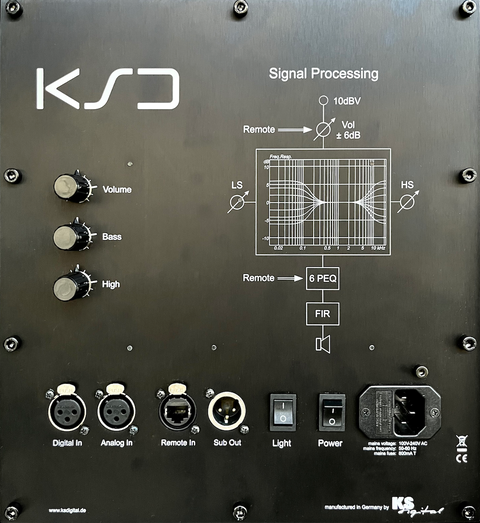

• Signal Processing: In FPGA in 24 Bit ADC/DAC FIRTEC, patent: 19823110

• Features: FIR-Xover, Limiter, 6 User-EQ curves, High-&Low Shelving, Delay, Gain

• Drivers: Coaxial chassis with 1″ compression driver on 70° horn and 10″ high-performance woofer/midrange driver

• Power Amplifiers: 250W/250W

• SPL (max): 118 dB Peak/pair

• Frequency Response: 35 – 22000 Hz

• Weight: 15 kg

• Dimensions: 285 x 350 x 350 mm
