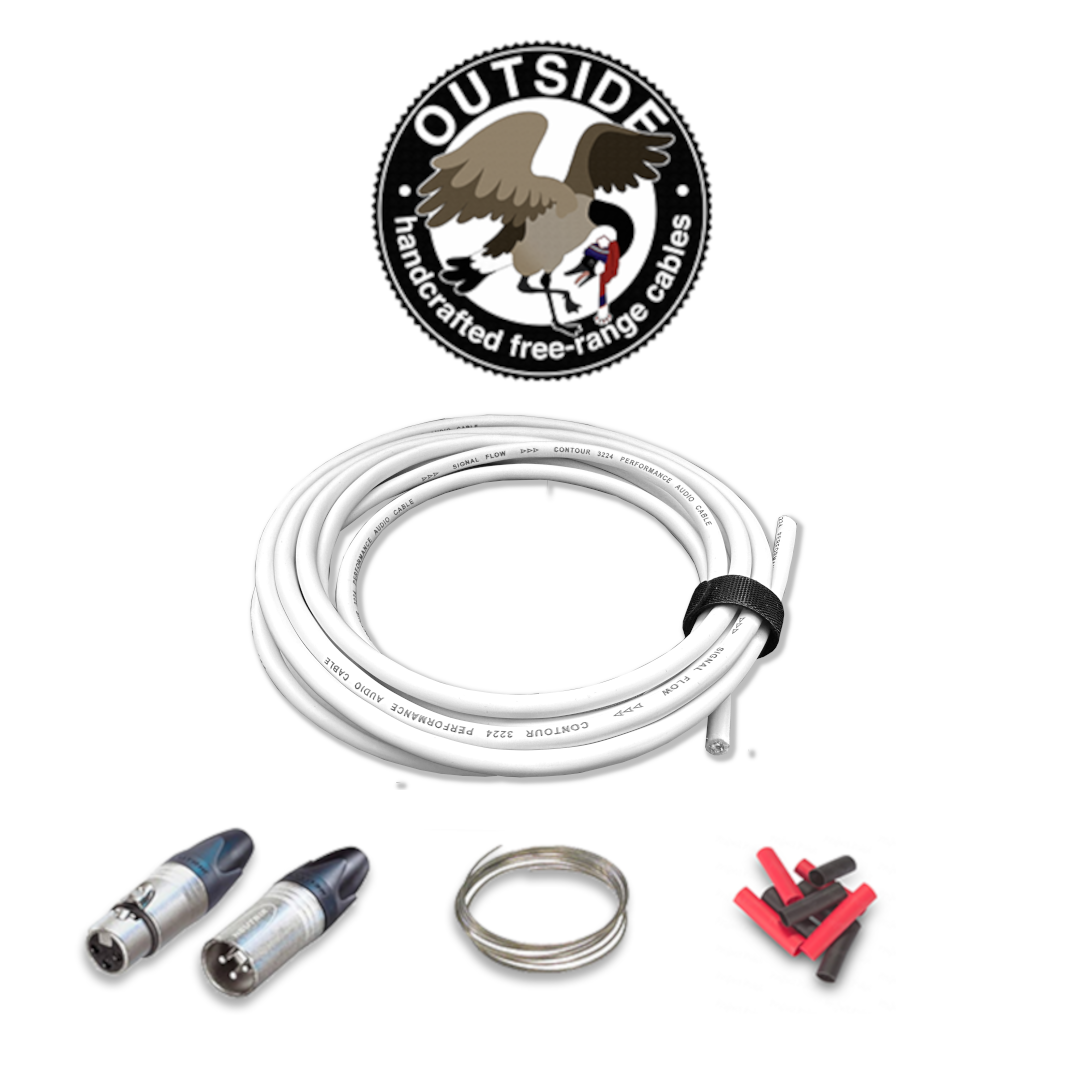

OMS DIY Microphone Cable Kit WHITE - 10 FT
- The kit includes 10 feet of BRTB Contour Cable for excellent sound quality and durability
- Pre-cut heatshrink for each solder point
- 15" of Kester Silver Solder
- 1 REAN nickel male XLR connector and 1 REAN nickel female XLR connector are included for reliable connectivity
- A tie wrap is included to keep everything organized
- Flexible black matte PVC cable, O.D. 6.0mm
- Wound OFHC copper shield
- Cotton filled and paper wrapped
- Polyethylene insulation (dielectric), O.D. 1.3mm
- Two 24 AWG, 19 strand, oxygen free, bare copper conductors, O.D. 0.61mm
- Colour coded black and white
- Conductor DCR @ 20 degrees Celcius; 86.85 Ohms/km
- Nominal Capacitance: 20.7 pF/Ft
The next generation of the worldwide accepted standard of XLR cable connectors.
Rugged diecast shell in sleek and ergonomic design.
3 pole female cable connector with Nickel housing and silver contacts.
Features & Benefits
- Unique cage design of female contact for low contact resistance and high integrity
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Female connector with improved solid metal latch which is larger and easier to handle
- Additional ground spring contacts for better shell ground continuity
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
- Internal thread on shell is well proteced against any damage
3 pole male cable connector with Nickel housing and silver contacts.
Features & Benefits
* Male connector with improved locking recess without "window", more stringent housing increases durability
* Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
* Boot with polyurethane gland gives high protection to cable bending stresses
* Colored rings and boots available for coding or identification
* Sleek and ergonomic design - valuable and handy
* Rugged zinc diecast shell, longlasting and dependable
* Internal thread on shell is well proteced against any damage
