OMS DIY Microphone Cable Kit - 10 FT

Non-returnable
$25.00 $30.00

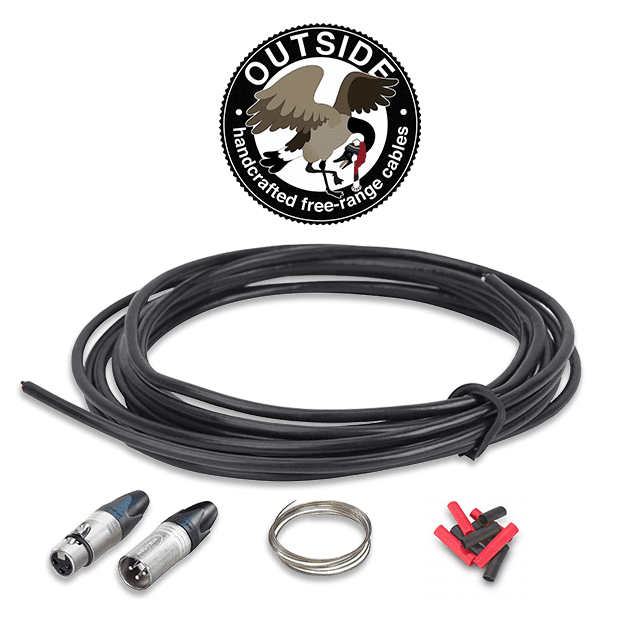

The Outside Cables DIY kit allows you to build your own high quality, professional grade microphone cable.
  • The kit includes 10 feet of BRTB Contour Cable for excellent sound quality and durability
  • Pre-cut heatshrink for each solder point
  • 15" of Kester Silver Solder
  • 1 REAN nickel male XLR connector and 1 REAN nickel female XLR connector are included for reliable connectivity
  • A tie wrap is included to keep everything organized
Add to Cart
OMS DIY Microphone Cable Kit - 10 FT
Product Details
BRTB Contour 3224 Microphone Cable

  • Flexible black matte PVC cable, O.D. 6.0mm
  • Wound OFHC copper shield
  • Cotton filled and paper wrapped
  • Polyethylene insulation (dielectric), O.D. 1.3mm
  • Two 24 AWG, 19 strand, oxygen free, bare copper conductors, O.D. 0.61mm
  • Colour coded black and white
  • Conductor DCR @ 20 degrees Celcius; 86.85 Ohms/km
  • Nominal Capacitance: 20.7 pF/Ft

Kester Lead Free Solder
Kester 275 No-Clean Flux for cored solder wire was developed to provide superior wetting performance for hand soldering in the electronics industry. The chemistry is based on some of the same principles that have been safely used for years in mildly activated rosin fluxes. The use of 275 No-Clean Flux results in an extremely clear post-soldering residue without cleaning. The unique chemistry in 275 was also designed to reduce spattering common to most core fluxes. 275 can be used for both lead-free and leaded soldering. 275 is classified as ROL0 per J-STD-004.

REAN RCF3 - 3 Pin XLR Female Connector

The next generation of the worldwide accepted standard of XLR cable connectors. The female connector comes with cage type contacts, "solder stop" for easy soldering and additional ground contact for best contact integrity between chassis and cable connector.

Rugged diecast shell in sleek and ergonomic design.

3 pole female cable connector with Nickel housing and silver contacts.

Features & Benefits

  •   Unique cage design of female contact for low contact resistance and high integrity
  •   Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  •   Female connector with improved solid metal latch which is larger and easier to handle
  •   Additional ground spring contacts for better shell ground continuity
  •   Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  •   Boot with polyurethane gland gives high protection to cable bending stresses
  •   Colored rings and boots available for coding or identification
  •   Sleek and ergonomic design - valuable and handy
  •   Rugged zinc diecast shell, longlasting and dependable
  •   Internal thread on shell is well proteced against any damage

REAN (Neutrik) RCM3 3 PIN XLR MALE CONNECTOR

The next generation of the worldwide accepted standard of XLR cable connectors.  The male connector comes with cage type contacts, "solder stop" for easy soldering and additional ground contact for best contact integrity between chassis and cable connector.

3 pole male cable connector with Nickel housing and silver contacts.

Features & Benefits

*  Male connector with improved locking recess without "window", more stringent housing increases durability
*  Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
*  Boot with polyurethane gland gives high protection to cable bending stresses
*  Colored rings and boots available for coding or identification
*  Sleek and ergonomic design - valuable and handy
*  Rugged zinc diecast shell, longlasting and dependable
*  Internal thread on shell is well proteced against any damage
